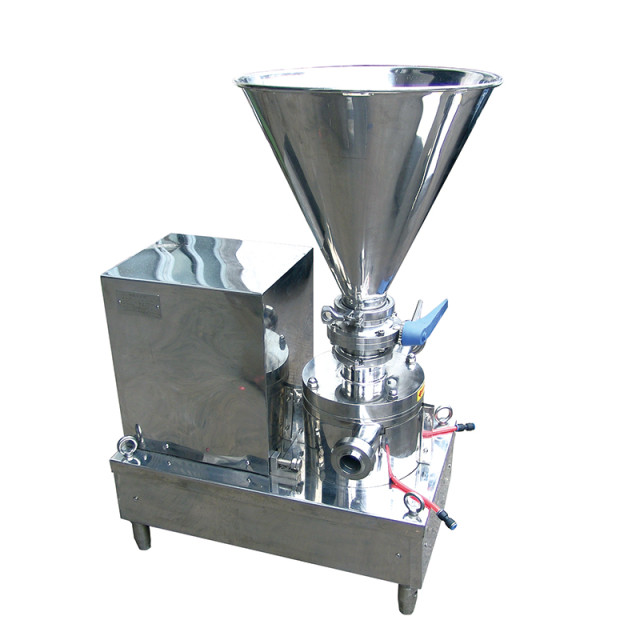

The main working principle of the machine is to use the high-speed rotating impeller to fully mix the powder materials and liquid, and transport the required mixture, so that the liquid materials can be quickly mixed to achieve ideal benefits. It is one of the essential equipment in the food and beverage industry.
It is especially suitable for the production of dairy products of reprocessed milk, such as milk powder, whey powder, calcium milk, dextrin powder, etc., which are mixed with fluids. In order to better meet the production and processing needs of food industry, daily chemical industry, pharmaceutical industry, and other industries with high quality and environmental protection, we can customize the production according to the customer's requirements for the acid, alkalinity, consistency, etc. of the processed materials
|
Specification
|
10T/H
|
20T/H
|
30T/H
|
|
impeller diameter
|
170mm
|
170mm
|
170mm
|
|
liquid inlet and outlet diameter
|
38mm
|
51mm
|
51mm
|
|
Max. work pressure
|
0.3Mpa
|
0.3Mpa
|
0.3Mpa
|
|
Absorbing temperature
|
≤80℃
|
≤80℃
|
≤80℃
|
|
Motor power
|
3.0KW
|
5.5KW
|
7.5KW
|
|
Dimension
|
630x420x960mm
|
670x440x1070mm
|
800x550x1300mm
|
|
Machine weight
|
112kg
|
125kg
|
155kg
|
