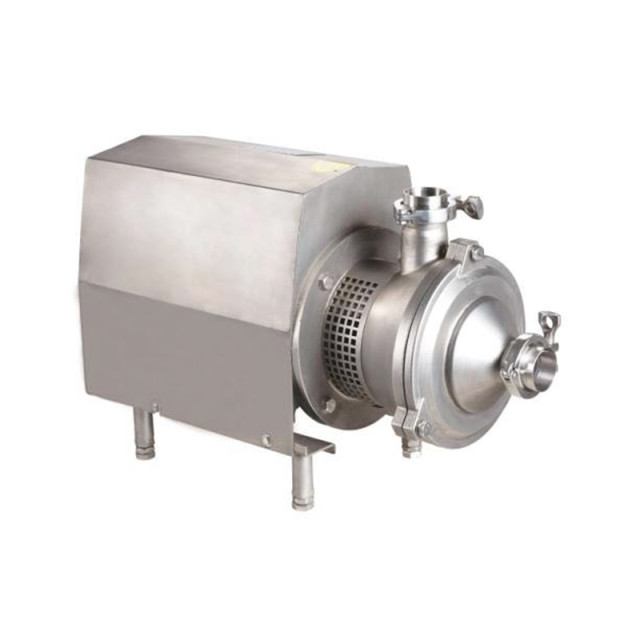

The self priming pump is mainly used to deal with the convey of gas-bearing materials. So it is widely used in the occassions that the liquid level is instable, and the liquid level is lower than that of inlet to draw the material, and also used as reture in the CIP system. And it is the necessary convey equipment in the food, chemical, pharmacy, field.
|
Specifications
|
10T-30T, 2.2KW-7.5KW
|
|
Material
|
The part contact with medium：AISI316L stainless steel
Other parts：AISI304 stainless steel The sealing contact with medium：EPDM |
|
Standards
|
DIN, SMS
|
|
Impeller
|
Open type impeller, there is no dead end
|
|
Operate condition
|
Health centrifugal pump is a few horizontal transport of high and low level, is not the self-priming type.
|
|
Surface treatment
|
The part contact with mdedium is polished, and other partis glass painted and sand blasted
|
|
Max inlet pressure
|
0.5MPa
|
|
Temperature range
|
-10℃--140℃(EPDM)
|
|
Flushed shaft mechanical sealing
|
water pressure: Max 0.1MPa
water lift: 0.25-0.5L/min
|
Configuration of "ABB" brand three-phase AC motor
The explosion-proof motor also available
It with excellent electric performance, and with low niose, low vibration, the protection grade is IP55, insulation grade is F.
Operate involtage： ≤3Kw, 220-240V/380-420V, △/Y
>3Kw, 380-420V/660-690V, △/Y
Requency：50Hz/60Hz
Working method: continuous(SI）
Rotate speed: 1450r/min
Product wetted steel parts: Acidresistant steel AISI 316L(AISI304) Other steel parts: Stainless ateel AISI 304 Outside surface: Matt treatment Inside surface: Bright Product wetted seals: EPDM rubber
