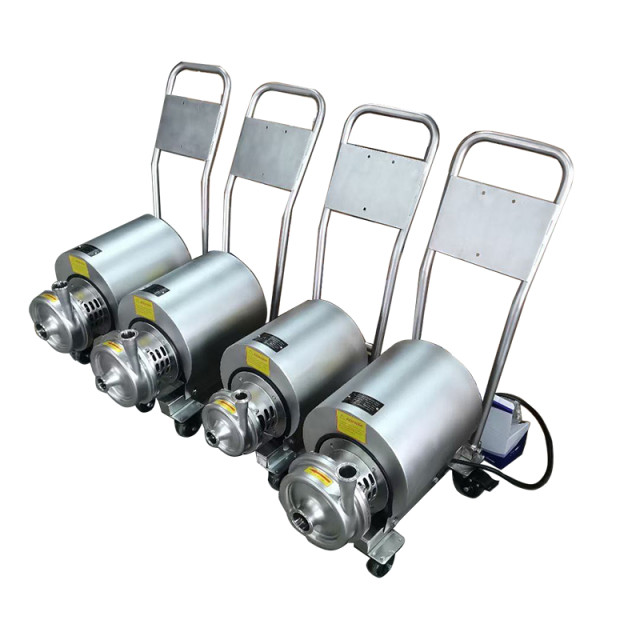

Sanitary Pump is applicable in the industries of Dairy, Beer Bevrage, Pharmaceutical and Chemitry. It conveys not only normal low or middle viscous solutions but also suspension and corrosive fluids. Sanitary centrifugal Pump has types of single staye, single suctiona and open styled impeller with its elaborate design in shell and impeller.
|
Specifications
|
3T--180T, 0.55KW--75KW
|
|
Material
|
SUS304, SUS316L, the pump body, pump cover and impeller contact with medium made of SUS316L, SUS304
|
|
Standards
|
DIN, SMS
|
|
Impeller
|
Open type impeller, there is no dead end
|
|
Operate condition
|
Health centrifugal pump is a few horizontal transport of high and low level, is not the self-priming type.
|
|
Surface treatment
|
The part contact with mdedium is polished, and other partisglass painted and sand blasted
|
|
Max inlet pressure
|
0.5MPa
|
|
Temperature range
|
-10℃--140℃(EPDM)
|
|
Flushed shaft mechanical sealing
|
water pressure: Max 0.1MPa
water lift: 0.25-0.5L/min
|
Configuration of "ABB" brand three-phase AC motor
The explosion-proof motor also available
It with excellent electric performance, and with low niose, low vibration, the protection grade is IP55, insulation grade is F.
Operate involtage： ≤3Kw, 220-240V/380-420V, △/Y
>3Kw, 380-420V/660-690V, △/Y
Requency：50Hz/60Hz
Working method: continuous(SI）
Rotate speed: 2900r/min
Product wetted steel parts: Acidresistant steel AISI 316L(AISI304) Other steel parts: Stainless ateel AISI 304 Outside surface: Ti Inside surface: Bright Product wetted seals: EPDM rubber
